A-PRE ￭ 2570 Pearl Buck Rd ￭ Bristol, PA. 19007 ￭ Tel: 215-788-0950 ￭ Fax: 215-788-7472
For Your Connection Needs In Automotive, Marine, Industrial & Aerospace
AFF (FEMALE)
CONSTRUCTION
A-PRE Reinforced Plastic Rod Ends are completely molded via a proprietary process.There are no secondary machining operations necessary.This allows for an outstanding precision molded quality product.
MATERIAL
The Rod End is injection molded from self-lubricating fiber reinforced nylon.The self-lubricating feature is good for wear resistance.The fiber gives the rod end excellent tensile strength and the nylon has good chemical and corrosion resistance making it ideal candidate for harsh enviroments.
TENSILE STRENGTH
A-PRE's rod ends are extremely strong.Preliminary testing on the AFF-010, loaded to over 220 pounds, proved to be no problem.But test them yourself, you'll be pleasantly surprised.
MOUNTING
Care should be taken in mounting.Over tightening could cause premature failure.It is also recommended that a separate stop be incorporated in the linkage system to eliminate the possibility of exceeding the misalignment capability of the rod end.
TESTING
Sample parts should be tested under actual operating conditions to ensure their ability to perform in your application.
CUSTOM LINKAGE
If your requirements are beyond the standard element let A-PRE help you design a custom linkage to meet your needs.
A-PRE Reinforced Plastic Rod Ends are completely molded via a proprietary process.There are no secondary machining operations necessary.This allows for an outstanding precision molded quality product.
MATERIAL
The Rod End is injection molded from self-lubricating fiber reinforced nylon.The self-lubricating feature is good for wear resistance.The fiber gives the rod end excellent tensile strength and the nylon has good chemical and corrosion resistance making it ideal candidate for harsh enviroments.
TENSILE STRENGTH
A-PRE's rod ends are extremely strong.Preliminary testing on the AFF-010, loaded to over 220 pounds, proved to be no problem.But test them yourself, you'll be pleasantly surprised.
MOUNTING
Care should be taken in mounting.Over tightening could cause premature failure.It is also recommended that a separate stop be incorporated in the linkage system to eliminate the possibility of exceeding the misalignment capability of the rod end.
TESTING
Sample parts should be tested under actual operating conditions to ensure their ability to perform in your application.
CUSTOM LINKAGE
If your requirements are beyond the standard element let A-PRE help you design a custom linkage to meet your needs.

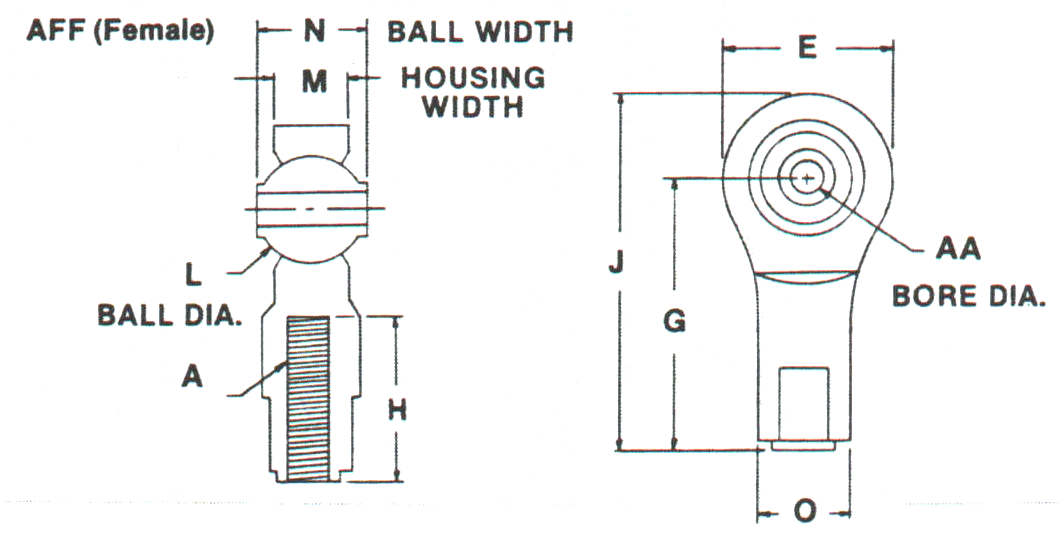

PT. # | A | AA | E | G | H | J | L | M | N | O |
AFF-010 | 10-32 | .189/191 | .687 | 1.125 | .625 | 1.468 | .438 | .320 | .422 | .406 |
AFF-250 | 1/4-28 | .250/.252 | .812 | 1.375 | .750 | 1.781 | .516 | .359 | .484 | .468 |
AFF-375 | 3/8-24 | .375/.379 | 1.125 | 1.882 | 1.125 | 2.445 | .753 | .500 | .675 | .735 |
AFF-M05 | M5 X .8 | 5.0/5.1 | 17.5 | 28.6 | 15.9 | 37.9 | 11.1 | 8.1 | 10.7 | 10.3 |
AFF-M06 | M6 X 1.0 | 6.0/6.1 | 20.6 | 34.9 | 19.0 | 45.2 | 13.1 | 9.1 | 12.3 | 11.9 |
AFF-M10 | M10 X 1.5 | 10.0/10.1 | 28.6 | 47.8 | 28.0 | 62.1 | 19.1 | 12.7 | 17.1 | 18.7 |
THREAD
SIZE
SIZE
Make the RIGHT
Connection,
Choose...
Connection,
Choose...
ALL-PLASTIC ROD ENDS
FOR A QUICK QUOTE CALL (215)788-0950
OF FAX TO (215)788-7472
FOR A QUICK QUOTE CALL (215)788-0950
OF FAX TO (215)788-7472
